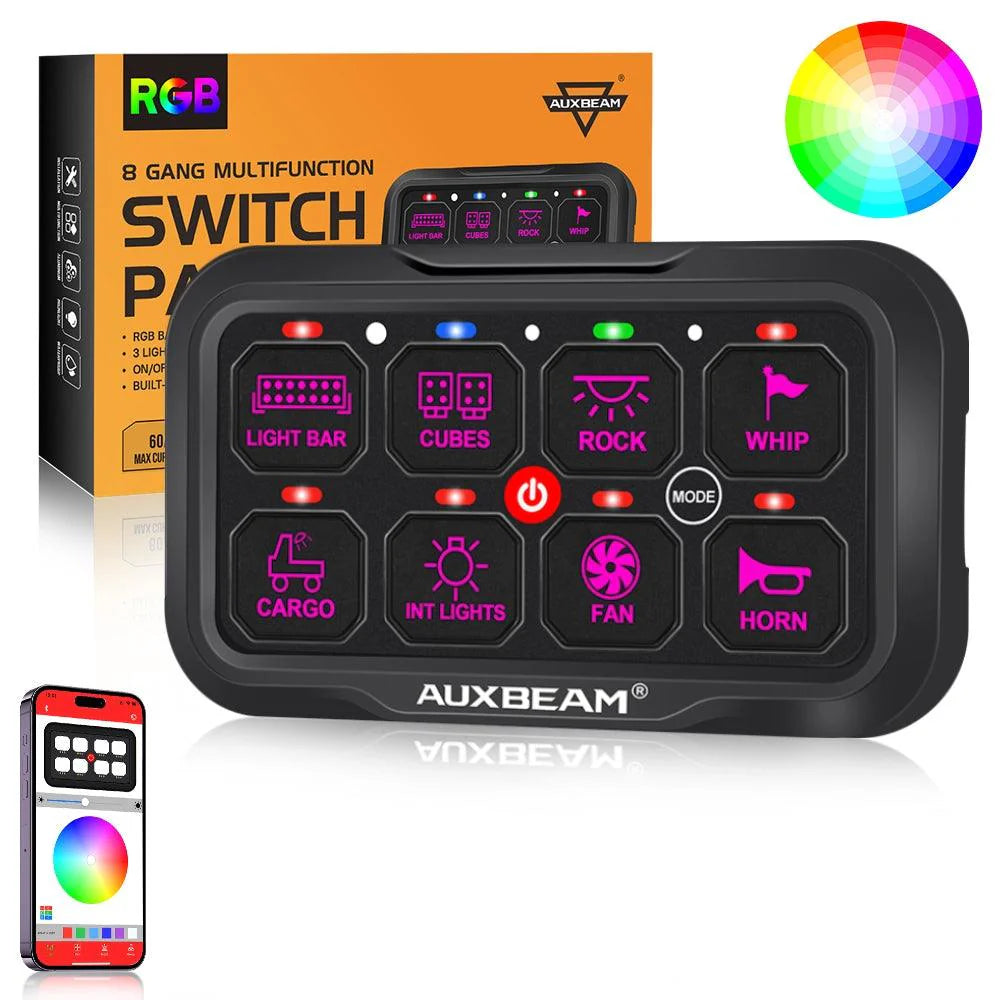

Auxbeam AR-800 Multifunction RGB Switch Panel with Bluetooth Controlled

  • Sale
  • $185.00
  • Regular price $269.99
Shipping calculated at checkout.


The New RGB switch panel is now available!

Auxbeam did some big upgrades on switch panel! The latest system can be operated via switch panel or smartphone. It’s not limited to just controlling the “ON/OFF” of the LED Lights or electrical devices. Change the backlight color and lighting modes to have fun programming with Auxbeam latest RGB switch panel!

Upgraded Functions:

★ RGB backlight - Unlimited color options match dash lighting and vehicle
★ 3 mode setting - Toggle/ Momentary/ Pulsed
★ Bluetooth APP control - Access to accessories no matter whether you are in the vehicle (The QR code of APP can be found in the picture)
★ Group setting - Set up a group via APP to control 2 or more lights at the same time
★ DIY switch panel - 60pcs stickers/ 200 default icons/ phone album photos

Specification:

Working voltage: DC 12-24V
Max current: 60A
Rated voltage: 12V 20A / 24V 10A
Operating at 12 Volts: max power rating of 720W
Operating at 24 Volts: max power rating of 1200W
Switch operation: On-Off
Operating temperature: -40°C - +105°C
Waterproof rating: IP65


Features:

  • 8-Gang one-sided outlet switch panel. It allows you to control up to 8 different LED lights or devices. Command all your vehicle accessories by the tap of your finger.
  • 2 control methods - Switch panel & Bluetooth APP, work synchronously. Built-in Bluetooth module allows you to program and control the system anytime & anywhere.
  • 3 modes setting. Each switch has 3 kinds of light status, different indicator status represents different working modes.
RED-Toggle, Constant light mode
BLUE-Momentary, Press & hold the button to turn on, then release the button to turn off

GREEN-Pulsed, Flash mode

  • RGB backlight color. Adjust backlight color and brightness to match your vehicle.

  • Backlight brightness automatic dimmable. Automatic adjustment according to the brightness variation of the environment.

  • Customize your own switch panel with 60 universal stickers.

  • DIY button icon on APP. 200 default icons or photo from phone album.

  • Setup group. Manage multiple accessories in your custom groups. Set up 2 or more accessories in a group and control them at the same time.

  • Universal fitment. Widely use for Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV, Heavy-duty machines, etc.

  • Waterproof IP65, high sensitivity, stability and strong anti-interference ability

  • Easy Installation. No complicated wiring, no need to cut a big hole in your vehicle. Plug & play wiring harness can connect the LED lights or accessories easily. Two types of mounting brackets, you can install anywhere you need, such as the dash panel, center console, overhead sunglasses holder, etc.

Bluetooth Connection Requirements:

  • Compatible with IOS & Android devices

  • IOS 9.0 or newer version, Android 4.5 newer version

  • Download the “Switch panel” app from Apple store or Google Play Store (free download). Scan QR code on the instructions.

  • If your Android device can not connect to the APP, please turn on GPS positioning and allow “Switch Panel” to access your phone’s location while using the APP.

Package Included:

  • 1 Set of 8 Gang RGB Switch Panel (all necessary hardware and wiring harness is included)

  • Installation Instructions

Guideline for connecting the red cables:

The red cable connects the master switch power cable to the ACC. If you want to light up the LED lamps before the car start-up, please connect the recommended because the higher the power is, the more the power of the battery will be consumed.

This item is shipped from AuxBeam. Shipping times vary.
